| Nom De Marque: | YOUWEI |
| Numéro De Modèle: | 168G3 |
| Quantité De Produit: | 10 |
| Prix: | USD 4-8 UNIT |
| Délai De Livraison: | 5-7 jours ouvrables |
| Conditions De Paiement: | T/T, Western Union, MoneyGram, D/A, L/C, Paypal |

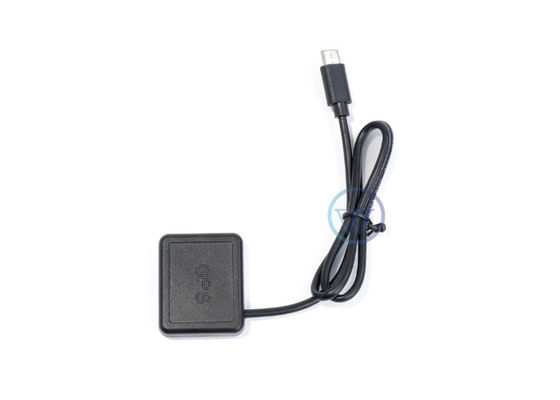

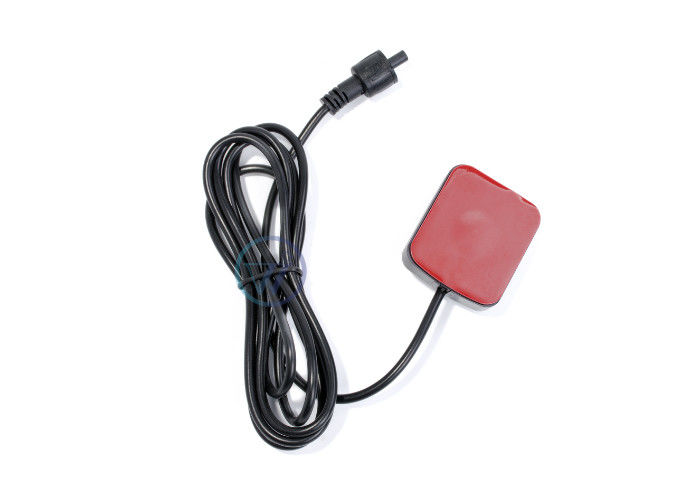

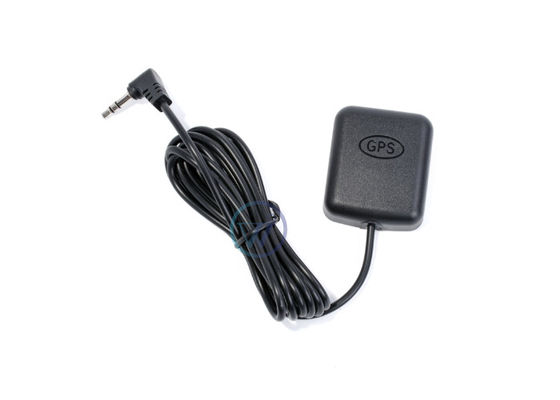

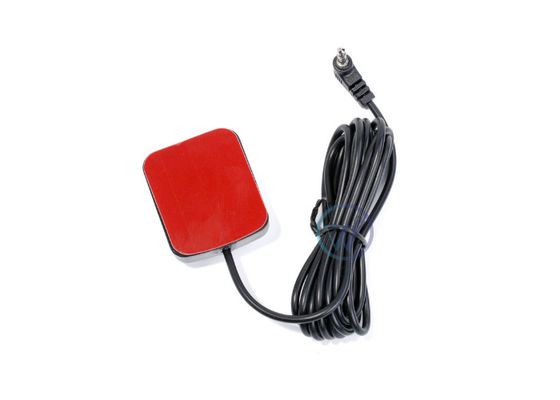

168G3 GPS Mouse Antenna Receiver Product Features:
| Item | Specification |
| Chip | MediaTek GK9051 (Rom Version) |
| Frequency | L1 frequency band |
| Code | C/A Code |
| Protocol | NMEA 0183 v4.1 GALILEO L1 open service (with upgrade) Default: GGA,GSA,GSV,RMC Support: VTG,GLL,TXT ublox binary and NMEA Command |
| Available Baud Rate | 9,600 bps |
| Channels | 66 |
| Sensitivity | Tracking: -161dBm Reacquisition: -160dBm Cold Start: -147dBm |
| Cold Start | 29 seconds, average |
| Warm Start | 28 seconds, average |
| Hot Start | 1 second, average |
| Accuracy | Horizontal Position: Autonomous <2.5m average, SBAS < 2.0m average Velocity: 0.1 m/s Timepulse signal: RMS 30 ns |
| Maximum Altitude | 50,000 meter |
| Maximum Velocity | 515 m/s (1000 knots) |
| Dynamics | 4G |
| Max navigation update rate | 1 Hz (Default 1Hz) |
A standardized serial data communication protocol developed by the National Marine Electronics Association (NMEA), primarily used for GPS and navigation systems.
1. Core Specifications
Purpose: Data exchange between GPS receivers, sensors, and marine/aviation/vehicle systems
Latest Version: 4.11 (though v3.01 remains widely adopted)
Key Features:
ASCII-based text format
Master-slave architecture (1 Talker → Multiple Listeners)
Default settings: 4800 baud, 8 data bits, no parity, 1 stop bit
2. Essential Data Sentences
Each sentence starts with $ followed by a 5-character identifier:
| Sentence | Description | Example (Simplified) |
| $GPGGA | Global Positioning Data | $GPGGA,092725.00,4717.11399,N,00833.91590,E,1,08,1.01,499.6,M,48.0,M,,*5B |
| $GPRMC | Recommended Minimum Data | $GPRMC,092725.00,A,4717.11399,N,00833.91590,E,0.004,77.52,091202,,,A*57 |
| $GPGSV | Satellite View | $GPGSV,3,1,11,03,03,111,00,04,15,270,00,06,01,010,00,13,06,292,00*74 |
| $GPVTG | Track & Speed Over Ground | $GPVTG,77.52,T,,M,0.004,N,0.008,K,A*06 |
3. Data Format Decoding ($GPRMC Example)
$GPRMC,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>,<11>,<12>*<checksum>
| Field | Meaning | Sample Value |
| 1 | UTC Time (HHMMSS.SS) | 092725.00 |
| 2 | Status (A=Valid, V=Invalid) | A |
| 3 | Latitude (DDMM.MMMMM) | 4717.11399 |
| 4 | Latitude Hemisphere (N/S) | N |
| 5 | Longitude (DDDMM.MMMMM) | 00833.91590 |
| 6 | Longitude Hemisphere (E/W) | E |
| 7 | Speed Over Ground (knots) | 0.004 |
| 8 | Course Over Ground (deg) | 77.52 |
| 9 | UTC Date (DDMMYY) | 091202 |
| 10 | Magnetic Variation (deg) | (null) |
| 11 | Variation Direction (E/W) | (null) |
| 12 | Mode Indicator (A=Autonomous) | A |
4. Practical Applications
Vehicle Navigation: Parse $GPRMC for real-time position/speed
Marine Tracking: Combine GPGGA(altitude)+GPGGA(altitude)+GPGSV (satellites)
Drone Control: Use $GPVTG for yaw calculation
Data Logging: Store raw NMEA sentences for analysis
5. Limitations
Low Bandwidth: Typically 1Hz update rate
No Encryption: Plaintext transmission
Poor Extensibility: Custom sentences required for new sensors (e.g., $PSTI)
|
